My Saved Article|CONCLUSIONS
on the experimental program presented in this report, the following
conclusions were made:
Control (Hg-free) Specimens
- Differences in the performance of
Al-alloy 5083-0 were observed when mechanically tested in inert
environments (i.e. air, water, oil) and when exposed to Hg in the
presence of either air, water or oil. The material was subject to Hg
attack and liquid metal embrittlement (LME). This behavior was
manifested by embrittlement and reductions in the strength of the
material when tested in the form of either stressed 1T compact tension
(CT) specimens and pressurized pipe specimens.
- Maximum susceptibility to Hg attack was noted under
conditions of (a) prolonged load cycling of the pressurized pipe
specimen which produced the low failure pressures relative to similarly
cycled control (Hg-free) specimens, and (b) when surface wetting agent
was used to promote surface contact of the Al-alloy and Hg which
produced increased Hg attack, LME and strength loss.
- Acoustic Emission (AE) monitoring of both
CT specimens and pipe specimens was successful in observing
characteristic emission from most specimens. These emissions can be
characterized as indicated below:
Hg Contaminated Specimens
was observed to occur during periods of load or pressure increase.
emissions ware of highest amplitude during the onset of yielding and
- AE decreased rapidly during hold periods of
constant maximum load and were not observable during periods of partial
or total unloading or during hold periods following these unloading
- The Kaiser effect was exhibited indicating an
re-initiation of AE only after the maximum load or pressure from a
previous cycle was reached or exceeded.
- MONPAC severity
analysis of control specimens indicated maximum intensity in the
location of final fracture during pressure/load cycles corresponding to
yielding of the material.
- The AE
characteristics were more complex than those observed for the control
- Most specimens exposed to Hg exhibited an increase
in low amplitude AE over comparable control specimens.
- The low
amplitude AE was most prevalent during the initiation of the tests
during periods of low loads in the CT specimens or low pressure (<500
psi) in the pipe specimens. The AE was somewhat random but also
increased during hold periods following partial or total unloading of
- Higher amplitude AE appear to occur during hold
periods at maximum load in a particular loading cycle. By comparison,
this behavior was very limited and attenuated rapidly in the control
- The AE response was difficult to evaluate in terms
of Kaiser or Felicity effects. The AE described for Hg contaminated
specimens in Items b and c above resulted in emissions occurring at
loads and/or pressures less than the previous maximum. However, the
response could not be determined to be categorized as either Kaiser or
- MONPAC severity analysis for Hg-contaminated
specimens were difficult to interpret. However, maximum intensity index
occurred in the location of final fracture during load/pressure
corresponding to yielding of the material. However, significant
intensity ratings were obtained even at very low pressures (0 - 500 psi)
in pipe specimens.
- Kamdar, M.W.,
"Liquid-Metal Embrittlement", Metals Handbook, Ninth Edition, Vol. 13,
Corrosion, pp 171-189.
- McIntyre, D. R., & Oldfield, J.W.,
"Environmental Attack of Ethylene Plant Alloys by Mercury", presented at
NACE Corrosion Prevention in the Process Industries Conference,
Amsterdam, The Netherlands, Nov. 8-11, 1988.
- Yuyama, S.,
"Fundamental Aspects of Acoustic Emission Applications to the Problems
Caused by Corrosion", Corrosion Monitoring in Industrial Plants Using
Nondestructive Testing and Electrochemical Methods. ASTM STP 908, G.C.
Moran and P. Labine, Eds., American society for Testing and Materials,
Philadelphia, 1986, pp 43-74.
- Fowler, T. J., "Acoustic Emission
Testing of Vessels", Chemical Engineering Process, September, 1988, pp
- Fleischmann, P. & Rouby, D., "Continuous Acoustic
Emission during the Deformation of Pure Aluminum", pp 39-51.
H.N.G., Scruby, C. B. & Speake J.H., "Acoustic Emission for
Physical Examination of Metals", International Metals Reviews, No. 2, pp
- Pollock, A. A., "Acoustic Emission Capabilities and
Applications in Monitoring Corrosion", Corrosion Monitoring in
Industrial Plants Using Nondestructive Testing and Electrochemical
Metals. ASTM STP 908, G. C. Moran and P. Labine, Eds., American Society
for Testing and Materials, Philadelphia, 1986, pp 30-42.
A., "Acoustic Emission Characterization of Corrosion Reactions in
Aluminum Alloys", CORROSION, Vol. 40, No. 9, Sept. 1984, pp 459-464.
R.H., Arey, B.W., Baer, D.R., and Friesel, M. A., "Grain-Boundary
Chemistry and Intergranular Stress Corrosion of Iron Alloys in Calcium
Nitrate", CORROSION, Vol. 45, No. 6., June, 1989, pp 494-502.
P., Dickson, J.I., & Bailon, J. P., "Monitoring Stress Corrosion
Cracking by Acoustic Emission", Corrosion Monitoring in Industrial
Plants Using Nondestructive Testing and Electrochemical Methods. ASTM
STP 908. G.C. Moran and P. Labine, Eds., American Society for Testing
and Materials, Philadelphia, 1986, pp 75-88.
Kh. G., "Application of the Kaiser Effect in Acoustic Emission (AE) to
Detect Hydrogen Embrittlement", copyright 1982 by the American Society
for Metals, Metals Park OH 44073, pp 472-476.
V.N., Schmitt-Thomas, Kh. G., Stengel, W., & Waterschek, R.,
"Detection of Hydrogen Embrittlement of a Carbon Steel by Acoustic
Emission", CORROSION, Vol. 37, No. 12, Dec. 1981, pp 691-695.
F., Sala, A., & Villa, G., "General Review of Developments in
Acoustic Emission Methods", Int. J. Pres. Ves. & Piping 28, 1987, pp
- Wilhelm, S.M., Wu, D., "Combating Liquid Metal Attack
by Mercury in Ethylene and Cryogenic Gas Plants", Task 3 - Surface
Treatments, Final Report, Cortest Laboratories, Inc., Jan. 1991.
Effect of Metallurgical
and Environmental Variables Upon Acoustic-Emission Energy per Unit Area
of Crack Advance during Fracture of Three Steels
Nominal Chemical Composition and Tensile
Properties of Al-Alloy 5083-0
* = Minimum Values
+ = Maximum Values

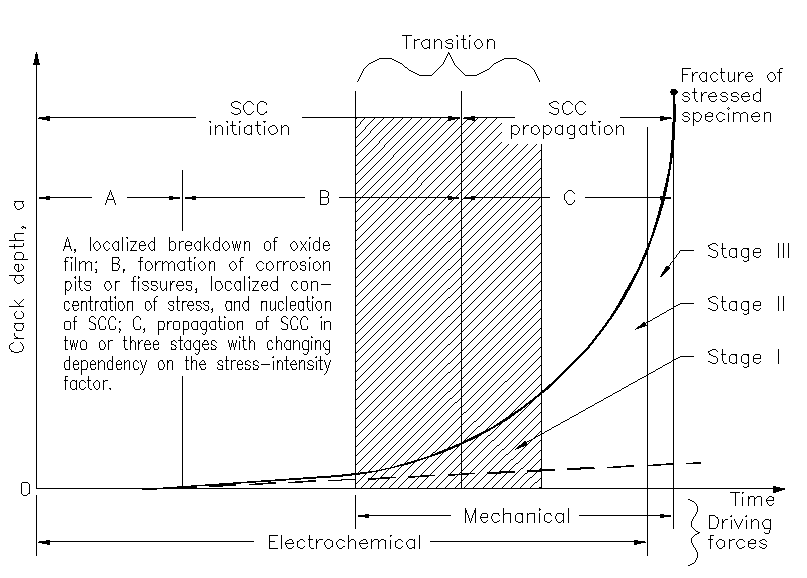

Figure 1: Influence of electrochemical and mechanical factors in SCC

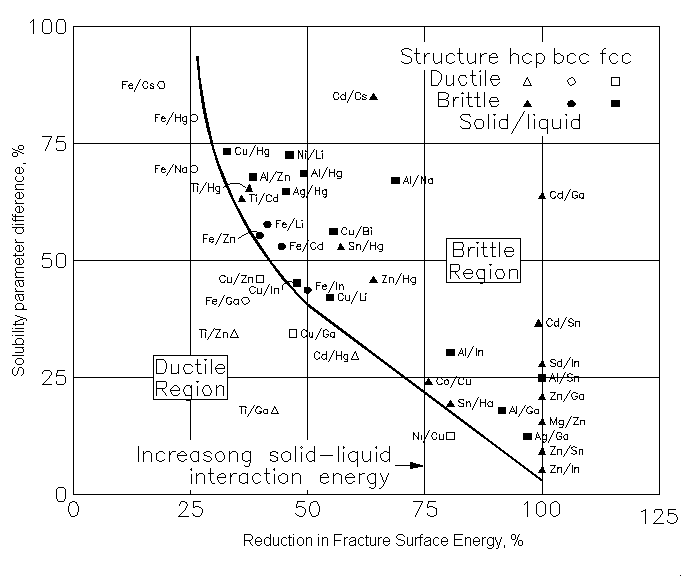

Figure 2: Embrittlement and non-embrittlement couple involving solid/liquid metals

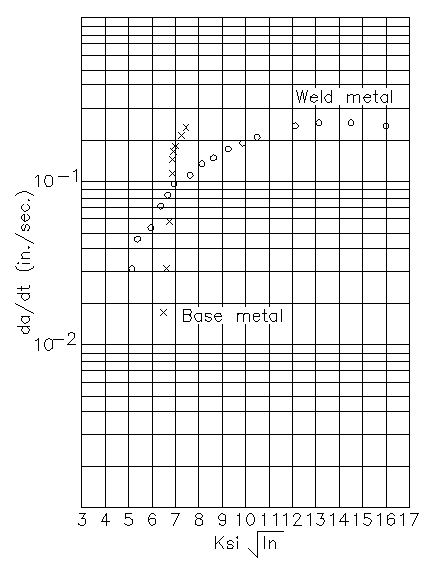

Figure 3: Crack growth rates of Al-alloy 5083-0 in Hg at 75 F

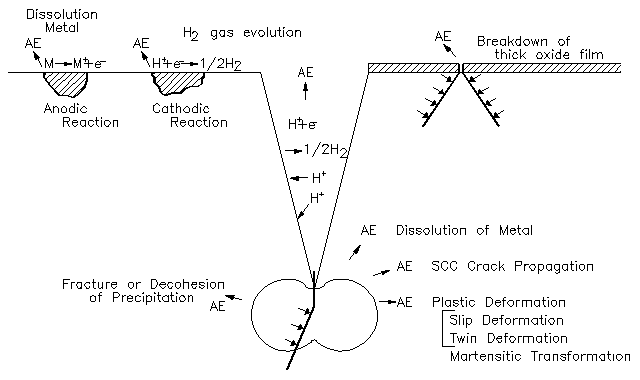

Figure 4: Acoustic Emission (AE) aources in metals related to corrosion or

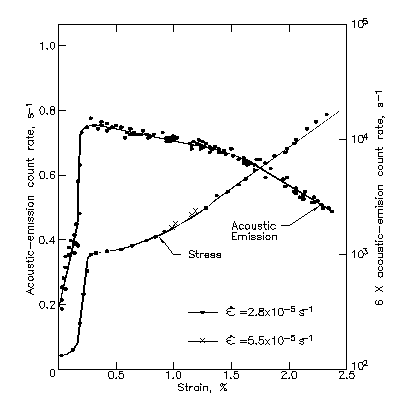

Figure 5: AE response during tensile strain of copper

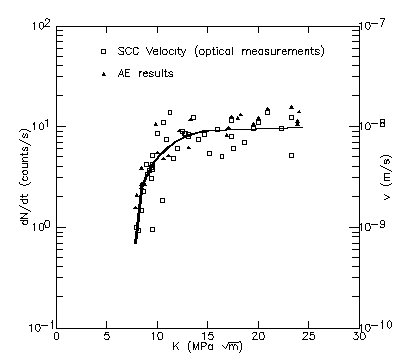

Figure 6: Relationship between AE and crack growth rate (velocity) in Al-alloy during SCC.

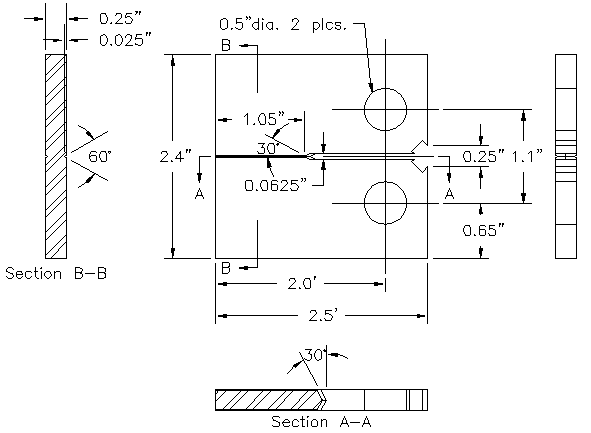

Figure 7: Compact Tension (CT) fracture mechanics specimen

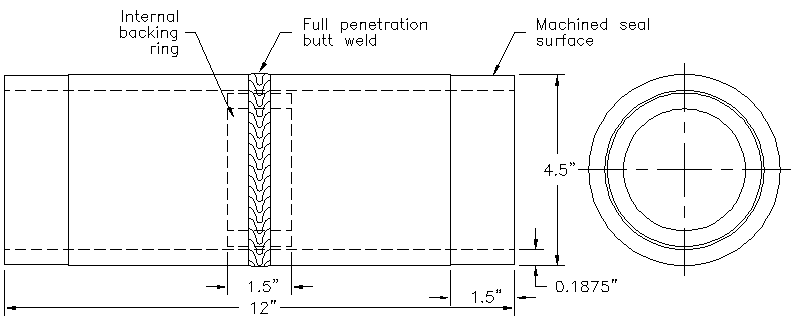

Figure 8: Aluminum pipe specimen with butt weld and internal backing ring

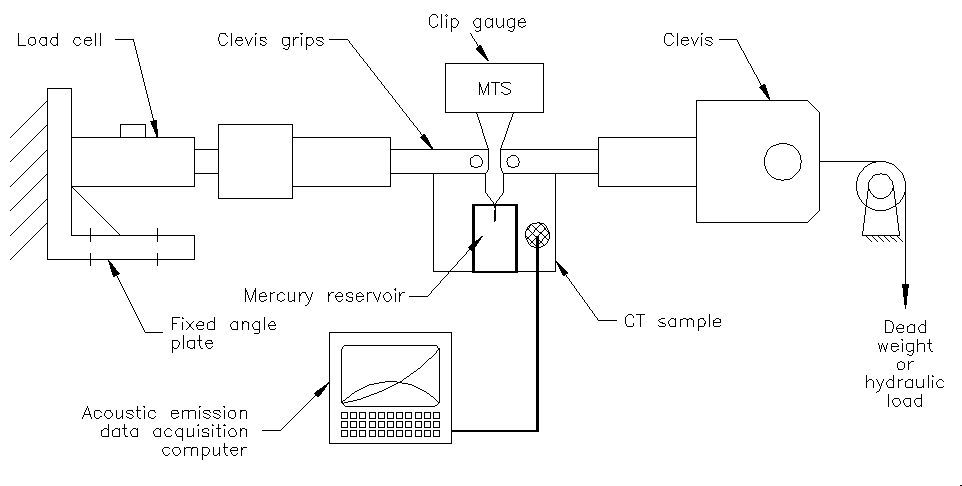

Figure 9: Schemctic of compact tension specimen test frame and AE monitoring

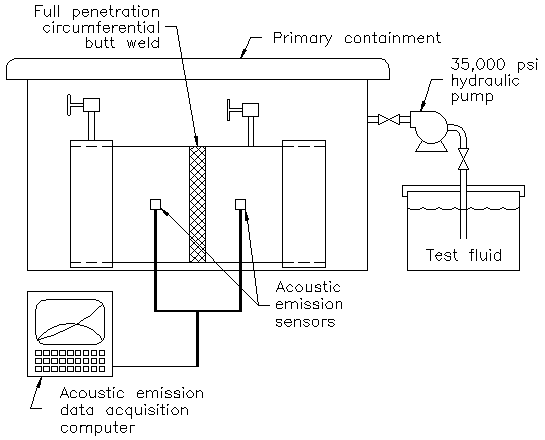

Figure 10: Setup for pipe tests with AE monitoring

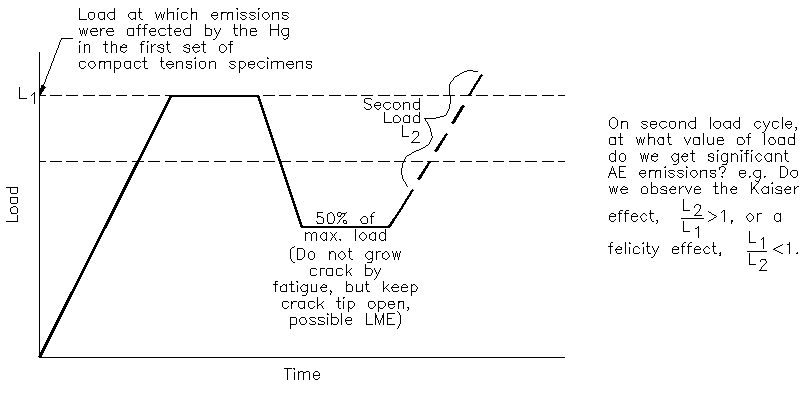

Figure 11: Precracked Compact Tension and pipe specimens in contact with Hg
